SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 12x4JA | White | Modular | 4 on 4.0 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | Galvanized | Modular | 4 on 4.0 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | White | Modular | 5 on 4.5 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | Galvanized | Modular | 5 on 4.5 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 13x4.5B | White | Modular | 4 on 4.0 | 2.82/2.95 | 0 | 1660 | 12.76 |
| 13x4.5B | Galvanized | Modular | 4 on 4.0 | 2.82/2.95 | 0 | 1660 | 12.76 |
| 13x4.5B | White | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 12.76 |
| 13x4.5B | Galvanized | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 12.76 |
| 13X5.5 | White | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 15.84 |
| 13X5.5 | Galvanized | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 15.84 |
| 13X5.5 | White | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1870 | 18.04 |
| 14X5.5 | Galvanized | Modular | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1870 | 18.04 |
| 14x6J | White | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | Galvanized | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | White | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | Galvanized | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 15x5J | White | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | White | Modular | 5 on 4.75 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Modular | 5 on 4.75 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | White | Modular | 5 on 5.0 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Modular | 5 on 5.0 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x6J | White | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 2640 | 21.12 |
| 15x6J | Galvanized | Modular | 5 on 4.5 | 3.19/3.30 | 0 | 2640 | 21.12 |
| 15x6J | White | Modular | 5 on 5 | 4.29 | 0 | 2640 | 21.12 |
| 15x6J | Galvanized | Modular | 5 on 5 | 4.29 | 0 | 2640 | 21.12 |
| 15x6J | White | Modular | 6 on 5.5 | 4.29 | 0 | 2850 | 21.12 |
| 15x6J | Galvanized | Modular | 6 on 5.5 | 4.29 | 0 | 2850 | 21.12 |
| 16x6K | White | Modular | 6 on 5.5 | 4.29 | 0 | 3760 | 29.04 |
| 16x6K | Galvanized | Modular | 6 on 5.5 | 4.29 | 0 | 3760 | 29.04 |
| 16x6K | White | Modular | 8 on 6.5 | 5.15 | 0 | 3960 | 29.04 |
| 16x6K | Galvanized | Modular | 8 on 6.5 | 5.15 | 0 | 3960 | 29.04 |

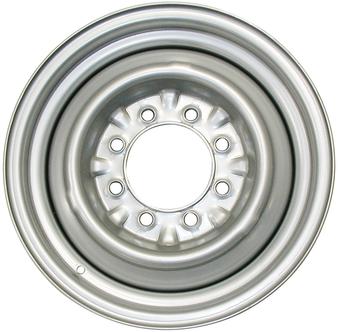

CONVENTIONAL & OEM SINGLE

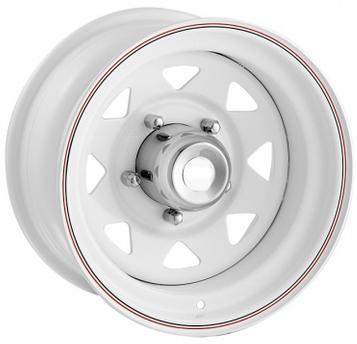

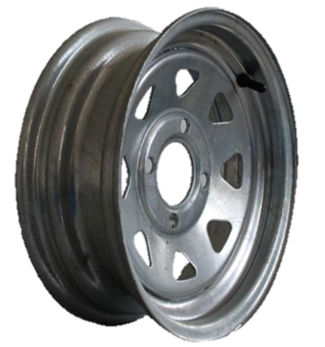

SPOKE

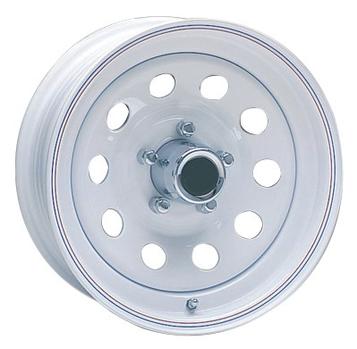

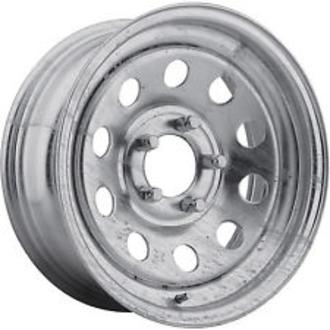

MODULAR

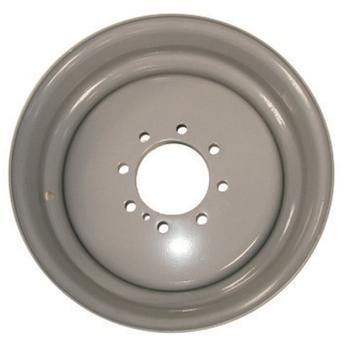

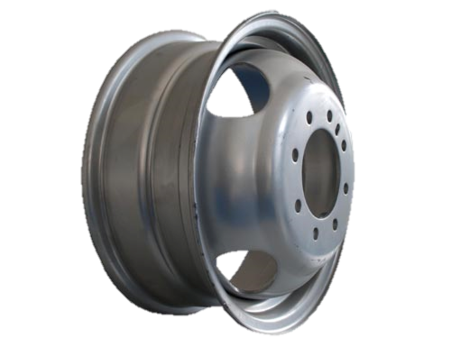

DUAL WHEELS
SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 16x6 | Black or Gray | Dual | 8 on 6.5 | 4.75 | 5.5 | 3500 | 37.4 |
| 16x6 | Black or Gray | Dual | 8 on 6.5 | 4.88 | 5.5 | 3500 | 37.4 |
| 17.5x6.75 | Black, Silver or Gray | Dual | 8 on 275mm | 221mm | 5.60"out (-142mm) | 6200 | 49.8 |
| 17.5x6.75 | Black, Silver or Gray | Dual | 10 on 8.75 | 6.5 | 6.19" out | 6200 | 54.6 |
12" to 17.5" Trailer Wheels
SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 12x4JA | White | Spoke | 4 on 4.0 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | Galvanized | Spoke | 4 on 4.0 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | White | Spoke | 5 on 4.5 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 12x4JA | Galvanized | Spoke | 5 on 4.5 | 2.82/2.95 | 0 | 1220 | 9.46 |
| 13x4.5B | White | Spoke | 4 on 4.0 | 2.82/2.95 | 0 | 1660 | 12.76 |
| 13x4.5B | Galvanized | Spoke | 4 on 4.0 | 2.82/2.95 | 0 | 1660 | 12.76 |
| 13x4.5B | White | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 12.76 |
| 13x4.5B | Galvanized | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 12.76 |
| 13X5.5 | White | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 15.84 |
| 13X5.5 | Galvanized | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1660 | 15.84 |
| 13X5.5 | White | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1870 | 18.04 |
| 14X5.5 | Galvanized | Spoke | 5 on 4.5 | 2.95/3.19/3.30 | 0 | 1870 | 18.04 |
| 14x6J | White | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | Galvanized | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | White | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 14x6J | Galvanized | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 1900 | 18.92 |
| 15x5J | White | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | White | Spoke | 5 on 4.75 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Spoke | 5 on 4.75 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | White | Spoke | 5 on 5.0 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x5J | Galvanized | Spoke | 5 on 5.0 | 3.19/3.30 | 0 | 2050 | 19.14 |
| 15x6J | White | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 2640 | 21.12 |
| 15x6J | Galvanized | Spoke | 5 on 4.5 | 3.19/3.30 | 0 | 2640 | 21.12 |
| 15x6J | White | Spoke | 5 on 5 | 4.29 | 0 | 2640 | 21.12 |
| 15x6J | Galvanized | Spoke | 5 on 5 | 4.29 | 0 | 2640 | 21.12 |
| 15x6J | White | Spoke | 6 on 5.5 | 4.29 | 0 | 2850 | 21.12 |
| 15x6J | Galvanized | Spoke | 6 on 5.5 | 4.29 | 0 | 2850 | 21.12 |
| 16x6K | White | Spoke | 6 on 5.5 | 4.29 | 0 | 3760 | 29.04 |
| 16x6K | Galvanized | Spoke | 6 on 5.5 | 4.29 | 0 | 3760 | 29.04 |
| 16x6K | White | Spoke | 8 on 6.5 | 5.15 | 0 | 3960 | 29.04 |
| 16x6K | Galvanized | Spoke | 8 on 6.5 | 5.15 | 0 | 3960 | 29.04 |
SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 16x6 | Silver | Conventional | 8 on 6.5 | 5.15 | 0.50" in (+12.5 mm) | 3750 | 31.2 |
| 17.5x6.75 | Black, Silver or Gray | OEM Single | 8 on 6.5 | 4.75 | 0.31" out (- 8 mm) | 6200 | 49.38 |
| 17.5x6.75 | Black, Silver or Gray | OEM Single | 8 on 6.5 | 4.75 | 0.50" out (- 12.5 mm) | 6200 | 49.38 |
| 17.5x6.75 | Black, Silver or Gray | OEM Single | 8 on 6.5 | 4.75 | 0.19" in (+ 5mm) | 6200 | 49.38 |
