INDUSTRIAL - PASSENGER - TRUCK GO-KART - ATV

THREE DIFFERENT THICKNESS

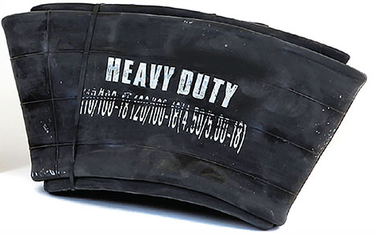

  • Heavy Duty (2mm thick): 50% thicker than most standard tubes
  • Extra Heavy Duty (3mm thick): 30% beefier than other heavy-duty tubes
  • Super Heavy Duty (4mm thick): this Super Heavy Duty tube will keep you going

Size & Specifications

HEAVY DUTY
SIZE THICKNESS VALVE
2.50/2.75-10 2mm TR-4
2.50-12 2mm TR-4
80/100-12 (3.00/3.25-12) 2mm TR-4
60/100-14 (2.25/2.50-14) 2mm TR-4
90/100-14 (3.60/4.10-14) 2mm TR-6
90/100-16 (3.50-16) 2mm TR-6
70/100-17 (2.25/2.50-17) 2mm TR-4
3.00/3.25-17 2mm TR-4
3.50/4.00-17 2mm TR-4
4.50/5.00-17 2mm TR-4
100/100-18 (4.00-18) 2mm TR-6
110/100-18, 120/100-18 (4.50/5.00-18) 2mm TR-6
70/100-19 (2.50/2.75-19) 2mm TR-4
100/90-19 (4.00-19) 2mm TR-6
110/90-19, 120/90-19 (4.50/5.00-19) 2mm TR-6
80/100-21 (3.00/3.25-21) 2mm TR-6
EXTRA HEAVY DUTY
SIZE THICKNESS VALVE
2.50/2.75-10 3mm TR-4
2.50-12 3mm TR-4
80/100-12 (3.00/3.25-12) 3mm TR-4
60/100-14 (2.25/2.50-14) 3mm TR-4
90/100-14 (3.60/4.10-14) 3mm TR-6
90/100-16 (3.50-16) 3mm TR-6
70/100-17 (2.25/2.50-17) 3mm TR-4
100/100-18 (4.00-18) 3mm TR-6
110/100-18, 120/100-18 (4.50/5.00-18) 3mm TR-6
70/100-19 (2.50/2.75-19) 3mm TR-4
100/90-19 (4.00-19) 3mm TR-6
110/90-19, 120/90-19 (4.50/5.00-19) 3mm TR-6
80/100-21 (3.00/3.25-21) 3mm TR-6
SUPER HEAVY DUTY
SIZE THICKNESS VALVE
110/100-18, 120/100-18 (4.50/5.00-18) 4mm TR-6
110/90-19, 120/90-19 (4.50/5.00-19) 4mm TR-6
80/100-21 (3.00/3.25-21) 4mm TR-6

MOTORCYLE OFF-ROAD TUBES

PASSENGER
SIZE VALVE
DR-12/13/14 TR13
ER12/13 TR13
FR12 TR13
FR13/14 TR13
G13/14/15 TR13
GR13/14/15 TR13
G13/14/15 TR15
GR13/14/15 TR15
K-14/15 TR13
KR14/15 TR13
MR14/15 TR13
M14/15 TR13
FR15 TR13
M-15HD TR13
G16 TR13
GR16 TR15
GR/KR16 TR13
K16 TR13
MEDIUM TRUCK
SIZE VALVE
8.25-20 TR177A
Large Sportstube TR13
Giant Sportstube TR13
9.00-20 TR175A
9.00R20 TR175A
10.00-20 TR78A
10.00R20 TR78A
GO-KART
SIZE VALVE
4.10/3.50-4 JS87P A0
9x3.50-4 JS87P A0
3.40/3.00-5 JS87 A90
3.40/3.00-5 JS87 A45
RADIAL ATV
SIZE VALVE
18x7R7/19x8R7 19x7/8R8 18x8.50/9.50/10.00/11.00R8 TR-6
18X8.50/9.50-8 TR-6
20X7R8/20X10/11R8, 21X9R8 TR-6
21x11R-8 TR-6
21x11/12R8 22x9/10/11/12R8 20x7/8/9/10/11R9 21x7/89/10/11/12R9 22x8/10/11R9 23x10R9 TR-6
25x12.00/13.50-9 TR-6
18X10/11R10 20X7.5/8/10/11R10 21X7R10 22X7/8/9/10/11R10 23X7/8/10/11R10 TR-6
24x11R10, 25x8/11/12R10, 22/23/24x8R11, 23.5x8R11, 23x9/10R11, 24x9/10R11 TR-6
23/24/25x8R12   23/24/25x10R12 TR-6
25X12R12/26X9R12/26X12R12 TR-6
INDUSTRIAL
SIZE VALVE
2.80/2.50-4 TR13
2.80/2.50-4 JS87
2.80/2.50-4 JS87P
3.00-4 JS-87
4.10/3.50-4 TR13
4.10/3.50-4 JS87
3.40/3.50-5 JS-87
3.40/3.00-5 JS87 A90
11X4.00/4.50/6.00-5 TR13
11X4.00/4.50/6.00-5 JS87
4.10/3.50-5 TR13
4.10/3.50-5 JS87
4.10/3.50-5 JS87 A45
4.00-6 TR13
5.30/4.50-6 TR13
5.30/4.50-6 JS87
13X5.00/6.50-6 TR13
13X5.00/6.50-6 JS87
145/70R-6 JS87
15X6.00-6 TR13
15X6.00-6 JS87
8.00-6 JS87
4.10/3.50-6 TR13
4.10/3.50-6 JS87
3.50/4.00-8 TR13
3.50/4.00-8 JS87
5.70/5.00-8 TR13
5.70/5.00-8 JS87
5.70/5.00-8 JS2
16X6.50/7.50-8 TR13
18x7.0-8 JS2
20X8.00-8 TR13
4.80/4.00-8/9 TR13
4.80/4.00-8/9 JS87
3.50/3.00-8 JS87
3.50/3.00-8 TR13
16X6.50-8 TR13
18X8.50/9.50-8 TR13
20x10.00-8 TR13
21x11-8 TR13
6.00/6.90-9 TR13CW
6.00/6.90-9 TR13
6.00/6.90-9 JS2
6.00/6.90-9 TR150
25x12.00/13.50-9 TR13
6.50/7.00/7.50-10 JS2
20x8.00-10 TR13
20.5x8.00/10.00-10 TR13
23x8.50/9.50/10.50-12 TR13
23x10.50-12 TR13
26x12.00-12 TR13
4.80/4.00-12 TR-13
4.50/5.30-12 TR13
5.70-12 TR87S
7.00-12 NHS TR440
7.00R12 NHS TR440
7.5L/9.5L-14/15 TR15
7.00/7.50-15 NHS TR440
7.00/7.50R15/16 TR13
7.00/7.50R15/16 TR75A
10/11R15/16 TR15CW
11LR15/16 TR15CW
11LR15/16 TR-218A
12R15/16 TR13
11L/12.5L-15/16 TR15CW
7.00/7.50R15/16   TR150
7.50/8.00-16SL TR15
11.00-16 TR15CW
4.00/5.00-16 TR13
8.00/8.75R16.5 TR15CW
9.50/10R16.5 TR15CW
12R16.5 TR15CW
4.00-19 TR15
