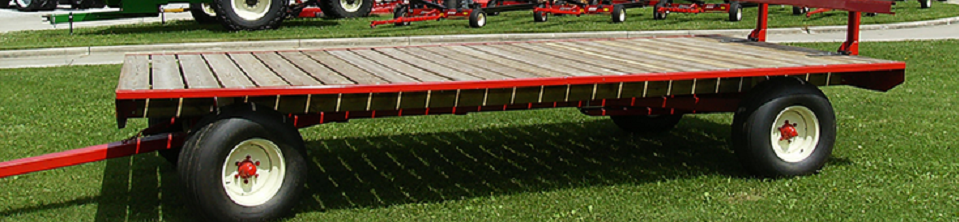

The 10x6 Heavy Duty wheels is perfect for bale wagons or other heavy duty applications.

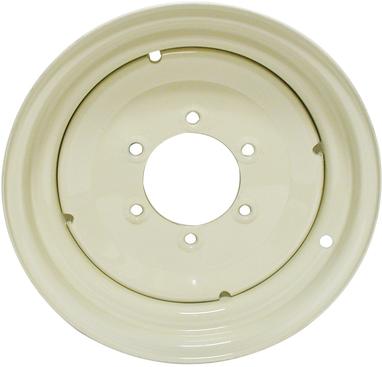

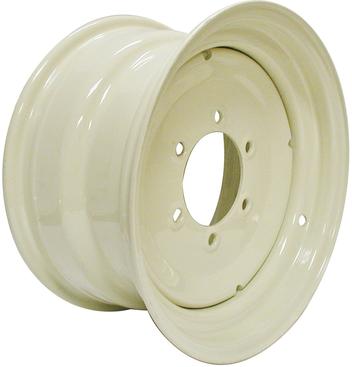

Agricultural Wheels
AGRICULTURAL
SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 15x5 | Off White or Cream | Ag | 4 on 5 | 4 | 0.25" out | 1870 | 15.9 |
| 16x6 | Off White or Cream | Ag | 6 on 6 | 4.65 | 1" in (25.4 mm) | 3760 | 31.1 |

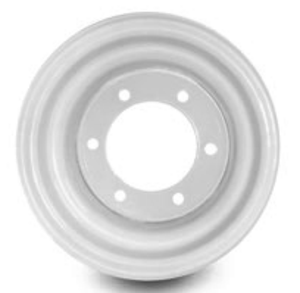

10x6 HEAVY DUTY
SIZE & SPECIFICATIONS
| BOLT | CENTER | MAX | WEIGHT | ||||
| SIZE | FINISH | STYLE | PATTERN | BORE | OFFSET | LOAD | LBS |
| 10x6 HD | White or Almond | Stamped | 6 on 6 | 4.65 | 0 | 2500 | 11.9 |
