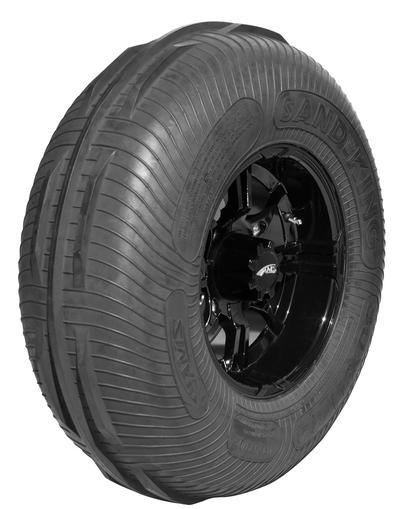

FRONT
Photo courtesy of The Brand Smith Co.
The all new SAND KING is the high-performance standard for UTV handling in the dunes. They are large 30” & 32" OD tires designed to provide today’s High Performance Turbo UTV’s with optimal float, balanced grip and to make the most of the horse power they have available. The front tire has a solid center rib with two adjacent segmented ribs for ultimate steering control. The 30" rear has 14 one inch tall paddles and the 32" rear has 15 one inch paddles to handle the horse power.
The SAND KING has all the newest technology needed for todays most advanced UTV’s. The SAND KING is a wide profile, 4 ply carcass that will provide maximum float and comfort.use.
TREAD | MAX | |||||||
OD | SW | DEPTH | LOAD | |||||
SIZE | PLY / LSI | PADDLES | Inches | Inches | RIM | 32nd | MAX PSI | LBS |
FRONT | ||||||||
30x11-14 | 4 | 3 -Rib | 30 | 10.5 | 8 | 18 | 18 | 610 |
32x11-15 | 4 | 3-Rib | 32 | 11 | 8 | 18 | 18 | 935 |
REAR | ||||||||
30x14-14 | 4 | 14 | 30 | 13 | 10 | 32 | 18 | 710 |
32x14-15 | 4 | 15 | 32 | 13.4 | 10 | 32 | 18 | 1100 |

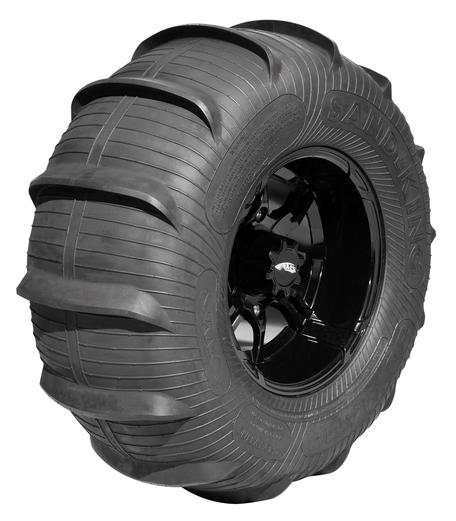

REAR
