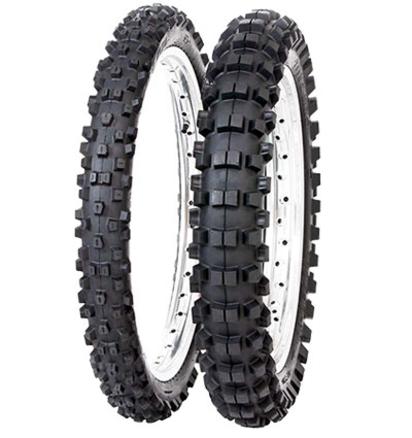

OF215 & OF230 OFF ROAD MOTORCYCLE
TIRE SPECIFICATIONS
| TREAD | |||||
| OD | SW | DEPTH | PSI | ||
| SIZE | PLY / LSI | Inches | Inches | 32nd | RANGE |
| FRONT - OF215 | |||||
| 70/100-17 Front | 4 / 40M | 22.8 | 2.8 | 13 | 10 - 15 |
| 70/100-19 Front | 4 / 42M | 24.7 | 2.8 | 11 | 10 - 15 |
| 80/100-21 Front | 4 / 51M | 27.7 | 3.1 | 15 | 10 - 15 |
| 90/100-21 Front | 4 / 51M | 28 | 3.3 | 15 | 10 - 15 |
| REAR - OF230 | |||||
| 90/100-14 Rear | 4 / 49M | 21.4 | 3.4 | 17 | 10 - 15 |
| 90/100-16 Rear | 4 / 51M | 23.6 | 3.6 | 16 | 10 - 15 |
| 110/100-18 Rear | 4 / 64M | 27.1 | 4.3 | 19 | 10 - 15 |
| 120/100-18 Rear | 4 / 68M | 27.3 | 4.5 | 19 | 10 - 15 |
| 100/90-19 Rear | 4 / 57M | 26.5 | 3.8 | 16 | 10 - 15 |
| 110/90-19 Rear | 4 / 62M | 27.2 | 4.1 | 19 | 10 - 15 |
| 120/80-19 Rear | 4 / 63M | 27.1 | 4.2 | 19 | 10 - 15 |
| 120/90-19 Rear | 4 / 63M | 27.4 | 4.4 | 19 | 10 - 15 |
- 4-Ply carcass
- Advanced rubber compound adds durability
- Semi-wide tread pattern
- Intermediate profile incorporates large tread volume on the shoulder
