- 22 ATR sizes & 15 XTR sizes
- All Season

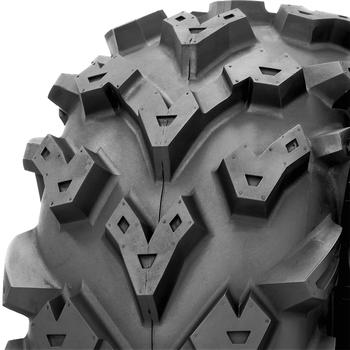

- Center line tread knobs provide a smooth controlled ride
- Excellent traction and clean-out
- 6 Ply RADIAL
- Premium extended wear compound

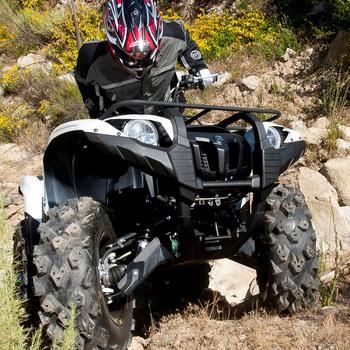

- Great for nearly every machine and every terrain
GM927
TIRE SPECIFICATIONS
| TREAD | MAX | ||||||
| OD | SW | DEPTH | LOAD | ||||
| SIZE | PLY / LSI | Inches | Inches | RIM | Inches | MAX PSI | LBS |
| GM927 ATR | |||||||
| 22x11R8 | 6 / 48J | 21.8 | 11.0 | 7 | 3/4" | 7 | 395 |
| 22x11R9 | 6 / 44J | 22.2 | 10.7 | 7 | 3/4" | 7 | 355 |
| 25x12R9 | 6 / 51J | 25.4 | 11.4 | 7 | 3/4" | 7 | 430 |
| 22x7R10 | 6 / 33J | 22.3 | 6.4 | 7 | 3/4" | 7 | 255 |
| 22x8R10 | 6 / 36J | 22.0 | 7.8 | 7 | 3/4" | 7 | 275 |
| 22x11R10 | 6 / 47J | 22.2 | 10.5 | 7 | 3/4" | 7 | 385 |
| 23x8R10 | 6 / 39J | 23.0 | 7.5 | 7 | 3/4" | 7 | 300 |
| 23x10R10 | 6 / 46J | 23.2 | 9.7 | 7 | 3/4" | 7 | 375 |
| 24x11R10 | 6 / 52J | 24.0 | 10.7 | 7 | 3/4" | 7 | 440 |
| 25x11R10 | 6 / 53J | 25.5 | 10.7 | 7 | 3/4" | 7 | 455 |
| 25x12R10 | 6 / 55J | 25.5 | 10.9 | 7 | 3/4" | 7 | 475 |
| 23x8R11 | 6 / 38J | 23.2 | 8.2 | 7 | 3/4" | 7 | 290 |
| 24x8R11 | 6 / 41J | 23.9 | 8.2 | 7 | 3/4" | 7 | 320 |
| 24x9R11 | 6 / 45J | 24.0 | 9.3 | 7 | 3/4" | 7 | 365 |
| 25x8R11 | 6 / 44J | 24.9 | 8.0 | 7 | 3/4" | 7 | 355 |
| 24x10R11 | 6 / 48J | 24.1 | 9.3 | 7 | 3/4" | 7 | 395 |
| 25x10R11 | 6 / 51J | 25.0 | 9.3 | 7 | 3/4" | 7 | 430 |
| 23x8R12 | 6 / 37J | 23.4 | 7.5 | 7 | 3/4" | 7 | 280 |
| 24x8R12 | 6 / 40J | 23.9 | 8.2 | 7 | 3/4" | 7 | 310 |
| 23x10R12 | 6 / 45J | 23.6 | 9.5 | 7 | 3/4" | 7 | 365 |
| 25x8R12 | 6 / 43J | 25.0 | 7.6 | 7 | 3/4" | 7 | 340 |
| 25x10R12 | 6 / 50J | 25.0 | 9.2 | 7 | 3/4" | 7 | 420 |
| See vehicle label or owners manual for operating pressure | |||||||
| GM927 XTR | |||||||
| 25x8R12 | 6 / 43J | 25.0 | 7.9 | 7 | 1-1/8" | 18 | 600 |
| 25x10R12 | 6 / 50J | 25.4 | 9.4 | 7 | 1-1/8" | 18 | 739 |
| 26x10R12 | 6 / 54J | 25.8 | 9.0 | 7 | 1-1/8" | 18 | 716 |
| 26x11R12 | 6 / 58J | 25.9 | 7 | 1-1/8" | 18 | 783 | |
| 26x12R12 | 6 / 58J | 26.4 | 10.1 | 7 | 1-1/8" | 18 | 852 |
| 27x9R12 | 6 / 52J | 27.0 | 8.5 | 7 | 1-1/8" | 18 | 937 |
| 27x11R12 | 6 / 60J | 27.2 | 9.2 | 7 | 1-1/8" | 18 | 761 |
| 26x9R14 | 6 / 79J | 26.4 | 8.6 | 7 | 1-1/8" | 18 | 908 |
| 26x11R14 | 6 / 82J | 26.4 | 9.2 | 7 | 1-1/8" | 18 | 694 |
| 27x9R14 | 6 / 80J | 27.2 | 8.3 | 7 | 1-1/8" | 18 | 808 |
| 27x11R14 | 6 / 84J | 27.5 | 9.3 | 7 | 1-1/8" | 18 | 739 |
| 28x10R14 | 6 / 75J | 27.9 | 10.0 | 7 | 1-1/8" | 18 | 852 |
| 30x10R14 | 8 / 66L | 30.0 | 10.0 | 7 | 1-1/8" | 18 | 660 |
| 26x9R15 | 6 / 78J | 26.4 | 8.5 | 7 | 1-1/8" | 18 | 694 |
| 26x11R15 | 6 / 80J | 26.4 | 9.2 | 7 | 1-1/8" | 18 | 805 |
| See vehicle label or owners manual for operating pressure | |||||||
